Lifting 8000mm Narrow Aisle Truck AC Control Multi Valve With Heavy Duty Chassis
  • name
  • name

Lifting 8000mm Narrow Aisle Truck AC Control Multi Valve With Heavy Duty Chassis

MOQ: 1 set
Price: Negotiable
Standard Packaging: Nude
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
CQD15
Capacity:
1500kg
Load Center Distance:
600mm
Max. Lifting Height:
3000/5000/6200/7400/8000mm
Free Lift:
~ /1700/2100/2500/2700mm
Fork Dimensions:
40/120/1070mm
Reach Distance:
600mm
Travel Speed, Laden/unladen:
9/9.3km/h
Highlight:

narrow aisle forklift truck

,

narrow aisle straddle truck

Product Description

8000mm electric reach truck narrow aisle truck with heavy duty chassis



Quick Details:

Product name: Heavy duty narrow aisle truck CQD15

Capacity: 1500kg​

Max. Lifting height: 3000/5000/6200/7400/8000mm

Reach distance: 600mm

​Free lift: ~ /1700/2100/2500/2700mm

​Fork dimension: 40/120/1070mm

​Travel speed, load/unload: 9/9.3km/h​​

Lift speed, load/unload: 0.24/0.3m/s

​Lowering speed, load/unload: 0.5/0.4m/s

​Aisle width for pallets 1000*1200 crossways: 2800mm

Aisle width for pallets 800*1200 lengthways: 2890mm

Turning radius: 1780mm

Battery: 48V400AH





Advantages:

  • ​​​AC control system.

  • Powering steering system (EPS).

  • Multi-function display can show: brake status, driving direction, hour meter, driving speed, fault code, etc..

  • Manual multi-valve.

  • Adjustable speed for forks lifting/lowering, mast forward/backward and side shift right/left.

  • German ZF brand gear box.

  • Adjustable steering wheel.

  • With travelling speed limited device when forks at high level.

  • Electronic height limited device.







Option:

  • Electronic multi valve.

  • Finger-tip control stick.

  • Side shift.

  • Height selection and height position system.

  • LCD display and camera (LCD for cold storage are available).

  • Travel/back-up flashing lights.

  • Side way battery.



CQD15 (EPS) Reach Truck is innovation type based on CQD15M, which with heavy duty chassis, extra large compartment and unequalled visibility, It can excels bigger load capacity at high reach elevation. The compact cabin design can be used in drive-in racking, which can help the operator works more effectively.

SPECIFICATIONS
Model   CQD15
Capacity/rated load kg 1500
Lifting height mm 3000/5000/6200/7400/8000
Load center distance mm 600
Drive wheel mm 310*125
Fork wheel mm 285*110
Tilt of mast/fork carriage forward/backward Grad 2,2(forks)
Height, mast lowered mm 2086/2240/2740/3190/3390
Free lift mm 0/1700/2100/2500/2700
Height, mast extended mm 3800/5800/7000/8200/8800
Height of overhead guard(cabin) mm 2140
Seat height/stand height mm 970
Height of crura mm 315
Overall length mm 2370
Length(barring fork) mm 1880
Overall width mm 1200
Fork dimensions mm 40/120/1070
Reach distance mm 600
Aisle width for pallets 1000*1200 crossways mm 2800
Aisle width for pallets 800*1200 lengthways mm 2890
Turning radius mm 1780
Travel speed, laden/unladen km/h 9/9.3
Lift speed, laden/unladen m/s 0.24/0.3
Lowering speed, laden/unladen m/s 0.5/0.4
Battery V/Ah 48/400
Service weight kg 2900/3000/3100/3200/3300

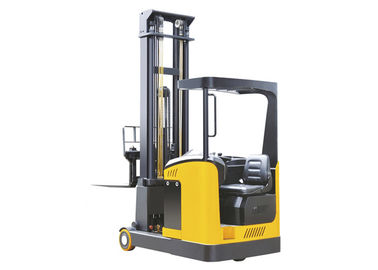

Lifting 8000mm Narrow Aisle Truck AC Control Multi Valve With Heavy Duty Chassis 0



Lifting 8000mm Narrow Aisle Truck AC Control Multi Valve With Heavy Duty Chassis 1



Tags:

narrow aisle forklift truck,

double reach forklift,

narrow aisle straddle truck
