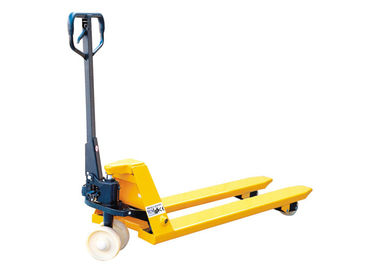

High Profile Hand Truck Pallet Jack 2000kg With Rubber Covered Handle
6 sets
MOQ
Negotiable
Price
High Profile Hand Truck Pallet Jack 2000kg With Rubber Covered Handle
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: BFH
High Light:

manual pallet jack

,

low profile pallet jack

Payment & Shipping Terms
Packaging Details: 6sets/pallet, 144 / 180sets for a 20ft container
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40000 sets per month
Specifications
Capacity: 2000kg
Lowered Fork Height: 140mm
Lifting Height: 255mm
Fork Size: 45/160/1150(1220)mm
Width Overall Forks: 520/550/685mm
Ground Clearance, Centre Of Wheelbase: 95mm
Service Weight: 70-80kg
Product Description



High-profile 2000kg hand pallet truck with 255mm lifting height



Quick Details



Model: High-profile hand pallet truck BFH

​​​Capacity: 2000kg

Lowered fork height: 140mm

Total lift height: 255mm

Fork dimension: 45/160/1150(1220)mm

​Width overall forks: 520/550/685mm

​Ground clearance, centre of wheelbase: 95mm

Turning radius: 1266/1336mm

​Service weight: 70-80kg





Advantages:

  • 2000KG High-profile hand pallet truck with lifting height 255mm.

  • ​Suit for the pallets with very high ground clearance.
  • Rubber covered handle.



SPECIFICATIONS OF HIGH-PROFILE HAND PALLET TRUCK
Model   BFH
Capacity kg 2000
Lowered fork height mm 140
Steering wheel mm 180
Fork wheel single mm 126*68
Fork wheel tandem mm ~
Max. lifting height mm 255
Total height mm 1279
Overall length mm 1533/1603
Fork dimensions mm 45/160/1150(1220)
Width overall forks mm 520/550/685
Ground clearance, centre of wheelbase mm 95
Aisle width for pallets 1000*1200 crossways mm 1733/1803
Aisle width for pallets 800*1200 lengthways mm 1783/1803
Turning radius mm 1266/1336
Service weight kg 70-80
