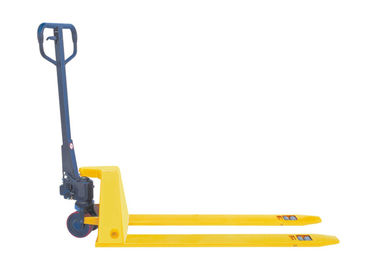

Fork Height 52mm Low Profile Pallet Jack Steel Wheel TUV Certification
6 sets
MOQ
Negotiable
Price
Fork Height 52mm Low Profile Pallet Jack Steel Wheel TUV Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: BFL
High Light:

manual pallet jack

,

low profile pallet jack

Payment & Shipping Terms
Packaging Details: 6sets/pallet, 144 / 180sets for a 20ft container
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 40000 sets per month
Specifications
Capacity: 1000/1500kg
Lowered Fork Height: 35/52mm
Lifting Height: 105/140mm
Fork Wheel Tandem: 35*60/50*70mm
Fork Dimensions: 28*150*1150(1220)/38*150*1150(1220)mm
Turning Radius: 1266/1336mm
Service Weight: 65-80kg
Product Description



Low-profile 1.5 ton hand pallet truck lowered fork height 52mm





Quick Details



Model: Low-profile hand pallet truck BFL

​​​Capacity: 1000/1500kg

Lowered fork height: 35/52mm

Total lift height: 105/140mm

​Fork wheel: 35*60/50*70mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1266/1336mm

​Service weight: 65-80kg





Advantages:

  • Suitable for pallets with very small ground clearance, the smaller the ground clearance is, the lighter the load capacity is.

  • The fork wheel is steel wheel.

  • 1.5T capacity lowered fork height - 52mm.

  • 1T capacity lowered fork height - 35mm.

  • Steel fork rollers.





SPECIFICATIONS OF 1 TON LOW-PROFILE HAND PALLET TRUCK
Model   BFL10
Capacity kg 1000
Lowered fork height mm 35
Steering wheel mm 150
Fork wheel single mm ~
Fork wheel tandem mm 35*60
Max. lifting height mm 105
Total height mm 1174
Overall length mm 1533/1603
Fork dimensions mm 28/150/1150(1220)
Width overall forks mm 520/550/685
Ground clearance, centre of wheelbase mm 7
Aisle width for pallets 1000*1200 crossways mm 1733/1803
Aisle width for pallets 800*1200 lengthways mm 1783/1803
Turning radius mm 1266/1336
Service weight kg 65-80



SPECIFICATIONS OF 1.5 TON LOW-PROFILE HAND PALLET TRUCK
Model   BFL15
Capacity kg 1500
Lowered fork height mm 52
Steering wheel mm 150
Fork wheel single mm 50*93
Fork wheel tandem mm 50*70
Max. lifting height mm 140
Total height mm 1189
Overall length mm 1547/1617
Fork dimensions mm 38/150/1150(1220)
Width overall forks mm 520/550/685
Ground clearance, centre of wheelbase mm 14
Aisle width for pallets 1000*1200 crossways mm 1747/1817
Aisle width for pallets 800*1200 lengthways mm 1797/1817
Turning radius mm 1286/1356
Service weight kg 65-80
