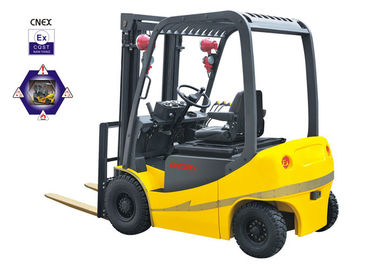

AC Powered Explosion Proof Forklift 1980mm Turning Radius With Anti - Friction Brake
1 set
MOQ
Negotiable
Price
AC Powered Explosion Proof Forklift 1980mm Turning Radius With Anti - Friction Brake
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CPD20Ex
High Light:

electric counterbalance forklift

,

electric reach truck

Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Specifications
Capacity: 2000kg
Max. Lifting Height: 3000-5600mm
Tilt Of Mast/fork Carriage Forward/backward: 3°- 6°
Fork Dimensions: 40/120/1070mm
Travel Speed, Laden/unladen: 11/11.5km/h
Lift Speed, Laden/unladen: 260/300mm/s
Battery: 48V540AH
Explosion-proof: Exd Mbs II BT4 Gb/DIP A21 TA、T4
Product Description



AC powered explosion-proof electric forklift with explosion-proof mark: Exsd II BT4 offer high safety functions






Quick Details:

Capacity: 2000kg

Lifting height: 3000-5600mm

Fork dimensions: 40/120/1070mm

Fork carriage width: 980mm

Aisle width for pallets 1000*1200 crossways: 3600mm

Aisle width for pallets 800*1200 lengthways: 3400mm

Turning radius: 1980mm

Travel speed, laden/unladen: 11/11.5km/h

Battery: 48V540AH



AC Powered Explosion Proof Forklift 1980mm Turning Radius With Anti - Friction Brake 0                                    AC Powered Explosion Proof Forklift 1980mm Turning Radius With Anti - Friction Brake 1

   - Explosion-proof special power device                             - Explosion-proof lights

     ExsdllBT4                                                                           (on each side) of Industrial

   - Explosion-proof electric horn of Industrial                          trucks ExdllBT4

     truck ExdllBT4                                                                  - Explosion-proof direction

   - Explosion-proof travelling switch (two)                               light (on each side) of

     EXedllCT6                                                                          Industrial trucks ExdllBT4






Advantages:


  • Side-put lifting cylinders and chains offer Wide-view visibility.

  • AC Variable-frequency speed control technology, greatly improved the reliability and safety.

  • Advanced H - drive axle, low center of gravity design, with stable turning.

  • With regenerative braking system, ramp soft starting, reverse braking system and other protection setting. Improve the safety under the hazardous environments.

  • Charger connection and emergency switch have an inter-lock system, safe for charging.

  • Special explosion-proof sealed VBS batteries conform to UK BS directive.

  • With anti-friction flameproof brake plate.

  • With alloy copper plated truck back body and forks.






AC Powered Explosion Proof Forklift 1980mm Turning Radius With Anti - Friction Brake 2







SPECIFICATIONS
Model   CPD20Ex
Explosion-proof   Exd mbs II BT4 Gb/DIP A21 TA, T4
Operation type   seat
Load capacity kg 2000
Load center distance mm 500
Load distance, centre of drive axle to fork mm 428
Wheelbase mm 1460
Axle loading, laden front/rear kg 4820/860
Axle loading, unladen front/rear kg 1760/1920
Tyre size, front mm 6.50-10-10PR Ex
Tyre size, rear mm 5.00-8-8PR Ex
Tread, front mm 970
Tread, rear mm 920
Tilt of mast/fork carriage forward/backward Grad 3°-6°
Height, mast lowered mm 2090-2450
Max. lifting height mm 3000-5600
Height, mast extended mm 4067-6667
Height of overhead guard(cabin) mm 1992
Seat height mm 980
Coupling height mm 480
Overall length mm 3300
Length to face of forks mm 2160
Overall width mm 1140
Fork dimensions mm 40/120/1070
Fork carriage width mm 980
Ground clearance, laden, below mast mm 100
Ground clearance, centre of wheelbase mm 130
Aisle width for pallets 1000*1200 crossways mm 3600
Aisle width for pallets 800*1200 lengthways mm 3400
Turning radius mm 1980
Travel speed, laden/unladen km/h 11/11.5
Lift speed, laden/unladen mm/s 260/300
Lowering speed, laden/unladen mm/s <600
Max. gradeability, laden/unladen % 10/15
Service brake   mechanical/hydraulic
Battery V/Ah 48/540
Type of drive control   AC
Sound level at the driver's ear acc. to DIN 12053 dB(A) 68
Service weight kg 3680





Our Ex AC type electric forklift is approved with Explosion-proof mark: Exd mbs II BT4 Gb/DIP A21 TA. T4 explosion-proof equipment for Category 2G, applicable to Zone I and Zone II which may have explosive gas environment. Offer high safety functions according to international standards.



Remark: The data is based on the lifting height 3000mm; lifting height from 3000mm to 5600mm are available.
