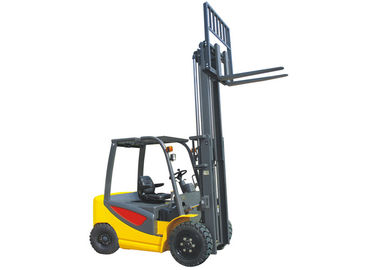

13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving
1 set
MOQ
Negotiable
Price
13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: FB35
High Light:

counterbalance forklift truck

,

battery powered forklift

Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Specifications
Capacity: 3500kg
Max. Lifting Height: 3000-6000mm
Tilt Of Mast/fork Carriage Forward/backward: 6°-12°
Fork Dimensions: 45/130/1070mm
Turning Radius: 2350mm
Travel Speed, Laden/unladen: 13km/h
Lift Speed, Laden/unladen: 220mm/s
Battery: 80V450AH
Product Description

Counterbalanced 4 wheel electric forklift truck lifting height from 3 to 6m with Krupp mast from Germany

Advantages:


​​High stability and safety:

  • Cab design by SIP point, conforms to EN-ISO 5353, ensures compartment with great comfort and fatigue-free operating.

  • Multifunction LCD digital display with digital service hour metre, battery discharge indicator, travel records, error code and warning displays. Provide fast and accurate monitoring truck status.

  • Mast cylinder lowering with buffering system: shock absorber steering axle with low noise. All of seal kits imported from Japan (NOK), transmission and working system have low noise.

  • With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal, reduce operator efforts and improve the brake life.

  • The optional of third safety pedal to reduce the driving speed while stacking and steering application.​





SPECIFICATIONS
Model   FB35
Power   electric
Operation type   seat
Load capacity kg 3500
Load center distance mm 500
Load distance, centre of drive axle to fork mm 498
Wheelbase mm 1700
Axle loading, laden front/rear kg 7084/966
Axle loading, unladen front/rear kg 1820/2730
Tyres type   pneumatic/solid
Tyre size, front mm 710*220/695*218
Tyre size, rear mm 590*175/577*162
Tilt of mast/fork carriage forward/backward Grad 6°-12°
Height, mast lowered mm 2045
Max. lifting height mm 3000-6000
Height, mast extended mm 4250-7250
Height of overhead guard(cabin) mm 2095
Seat height/stand height mm 1050
Overall length mm 3655
Length to face of forks mm 2585
Overall width mm 1205
Fork dimensions mm 45/130/1070
Fork carriage width mm 1200
Ground clearance, laden, below mast mm 135
Ground clearance, centre of wheelbase mm 150
Aisle width for pallets 1000*1200 crossways mm 3950
Aisle width for pallets 800*1200 lengthways mm 3750
Turning radius mm 2350
Travel speed, laden/unladen km/h 0-13
Lift speed, laden/unladen mm/s 220
Lowering speed, laden/unladen mm/s <600
Max. drawbar pull, laden/unladen N 15650
Max. gradeability, laden/unladen % 12/15
Acceleration time, laden/unladen s 0-3
Battery V/Ah 80/450
Type of drive control   DC/AC
Operating pressure for attachments Mpa 17
Sound level at the driver's ear acc. to DIN 12053 dB(A) <65.2
Service weight kg 4550



13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 0





13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 1       13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 2

  Multifunction LCD digital display                 DC double electric controller



13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 3       13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 4

  New front cowl offers large foot space        Large battery capacity with lock

                                                                      bolts provides large open space

                                                                      allowing operator easy to maintain







13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 5





13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 6

13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 7

13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 8





13km / H Counterbalance Forklift Truck 80V 450AH Low Noise Energy Saving 9



Remark: The data is based on the lifting height 3000mm; lifting height from 3000mm to 6000mm are available; Electric controller selection: ZAPI, DMC, CURTIS.
